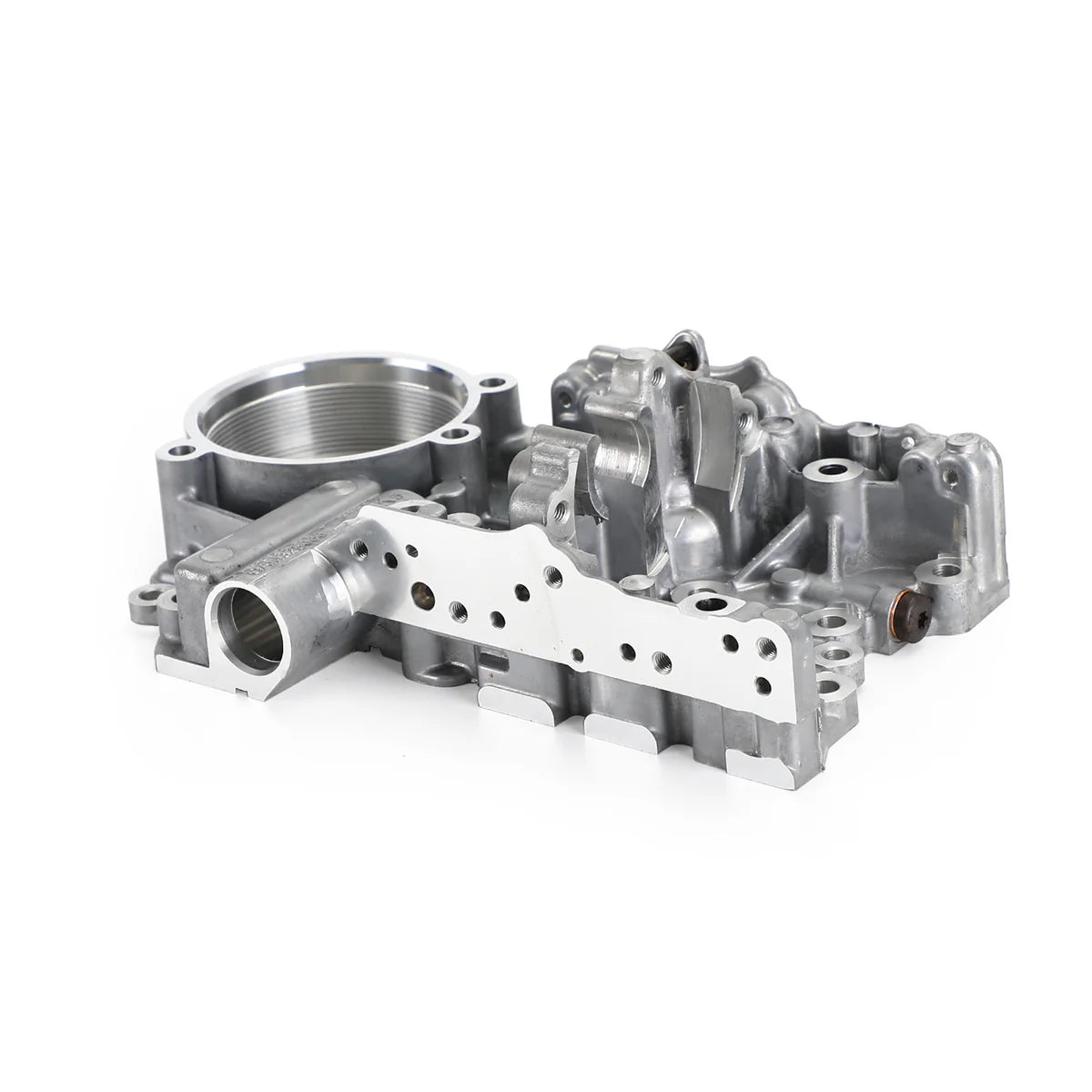

VW AUDI DQ200 0AM 0CW MECHATRONIC UPGRADED REBUILD KIT 0AM325065S
Overview
This is a complete rebuild kit for the Volkswagen Group DQ200 mechatronic unit — everything you need to fully restore your mechatronic in one kit. Included is an upgraded, strengthened valve body that improves on the original factory design, along with all seals, O-rings, gaskets, and components required for a thorough rebuild. A cost-effective alternative to a full unit replacement, this kit is suitable for experienced mechanics and specialist transmission workshops.

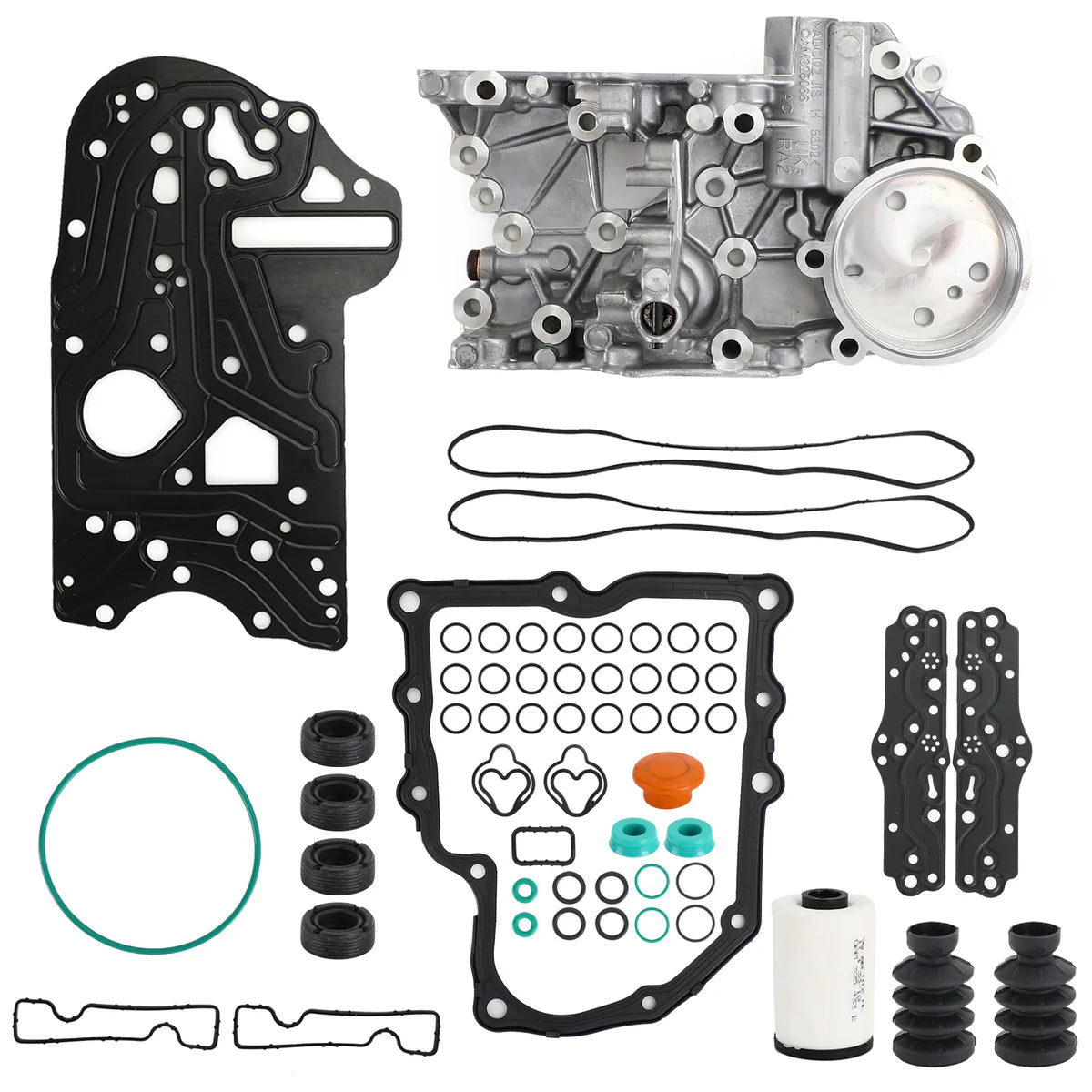

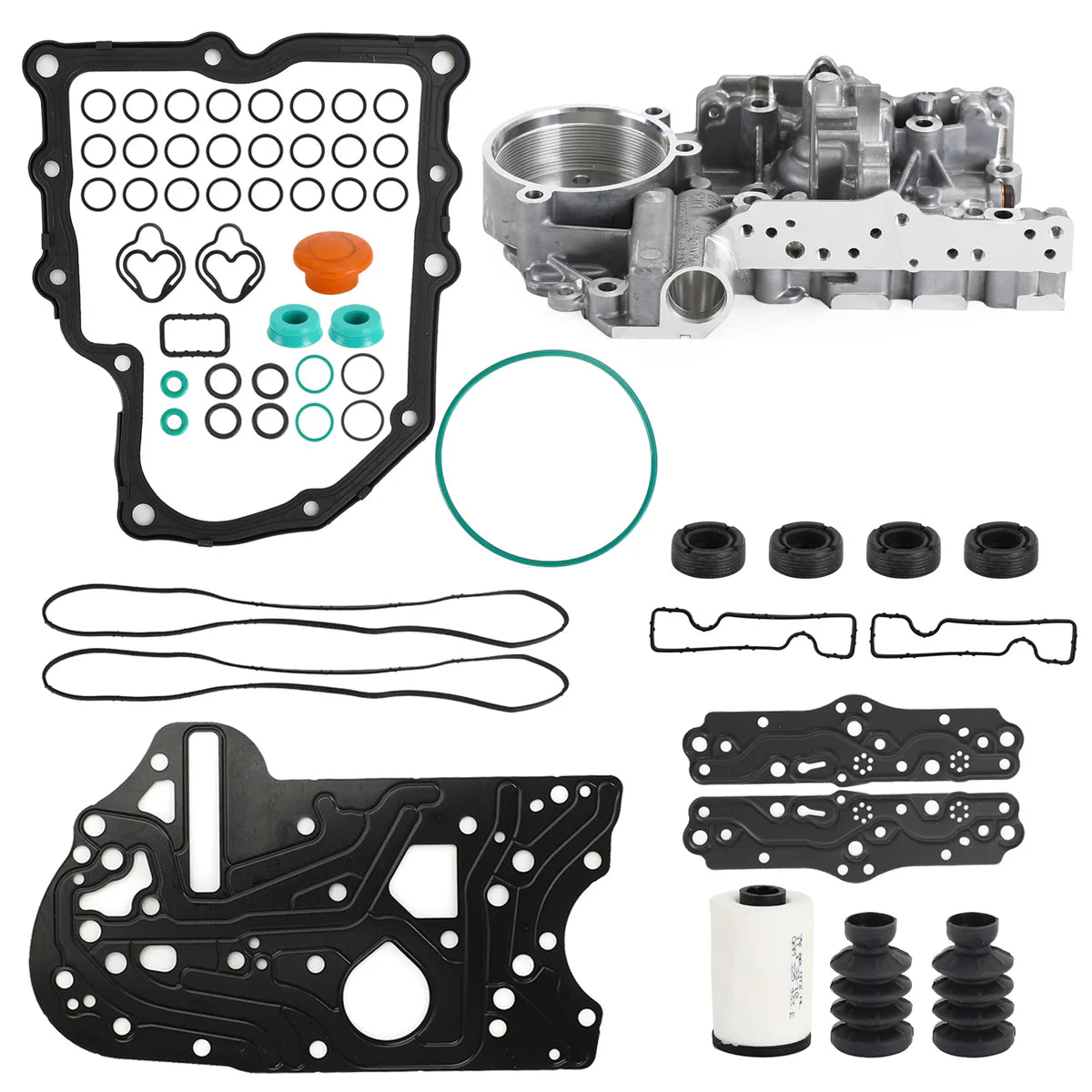

What's included

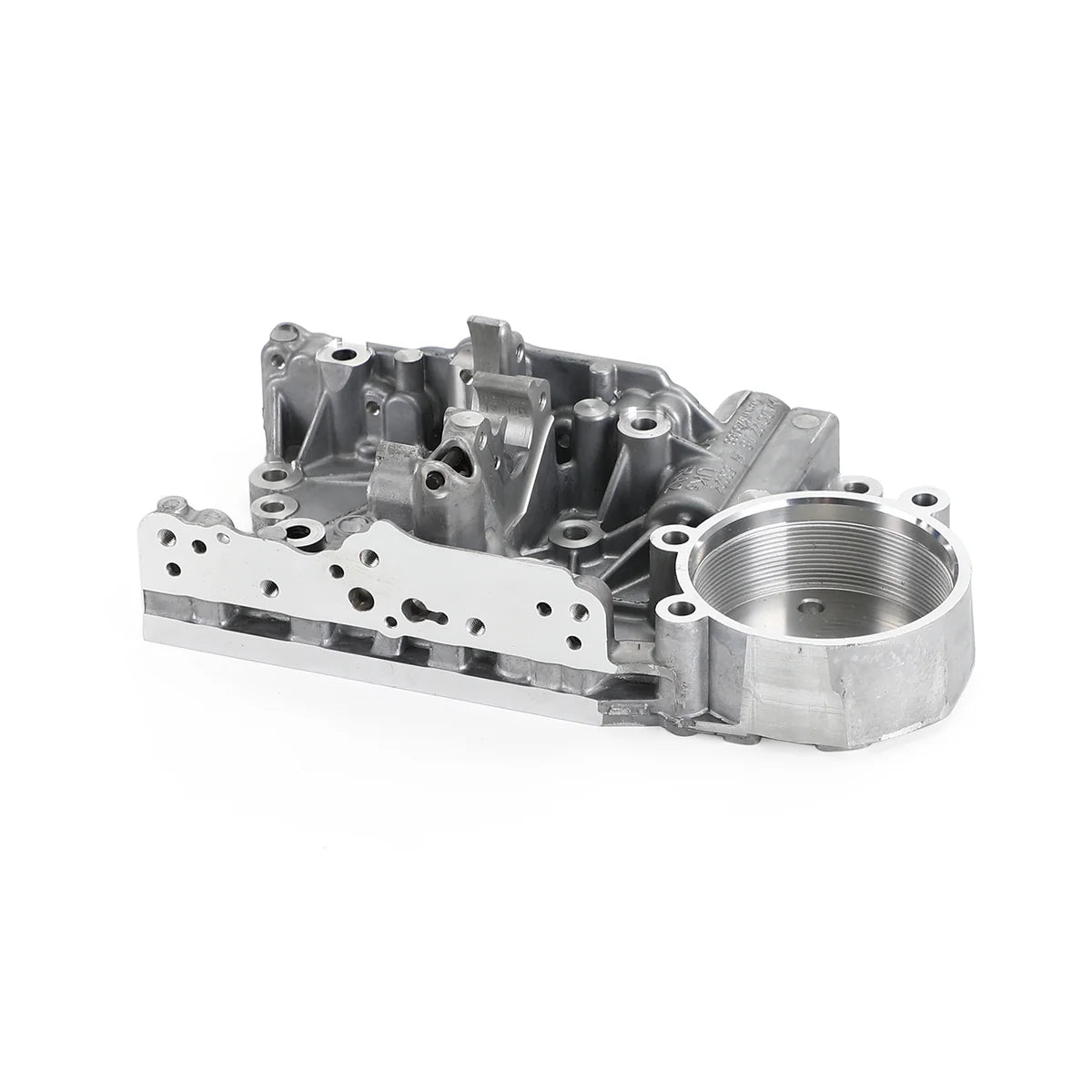

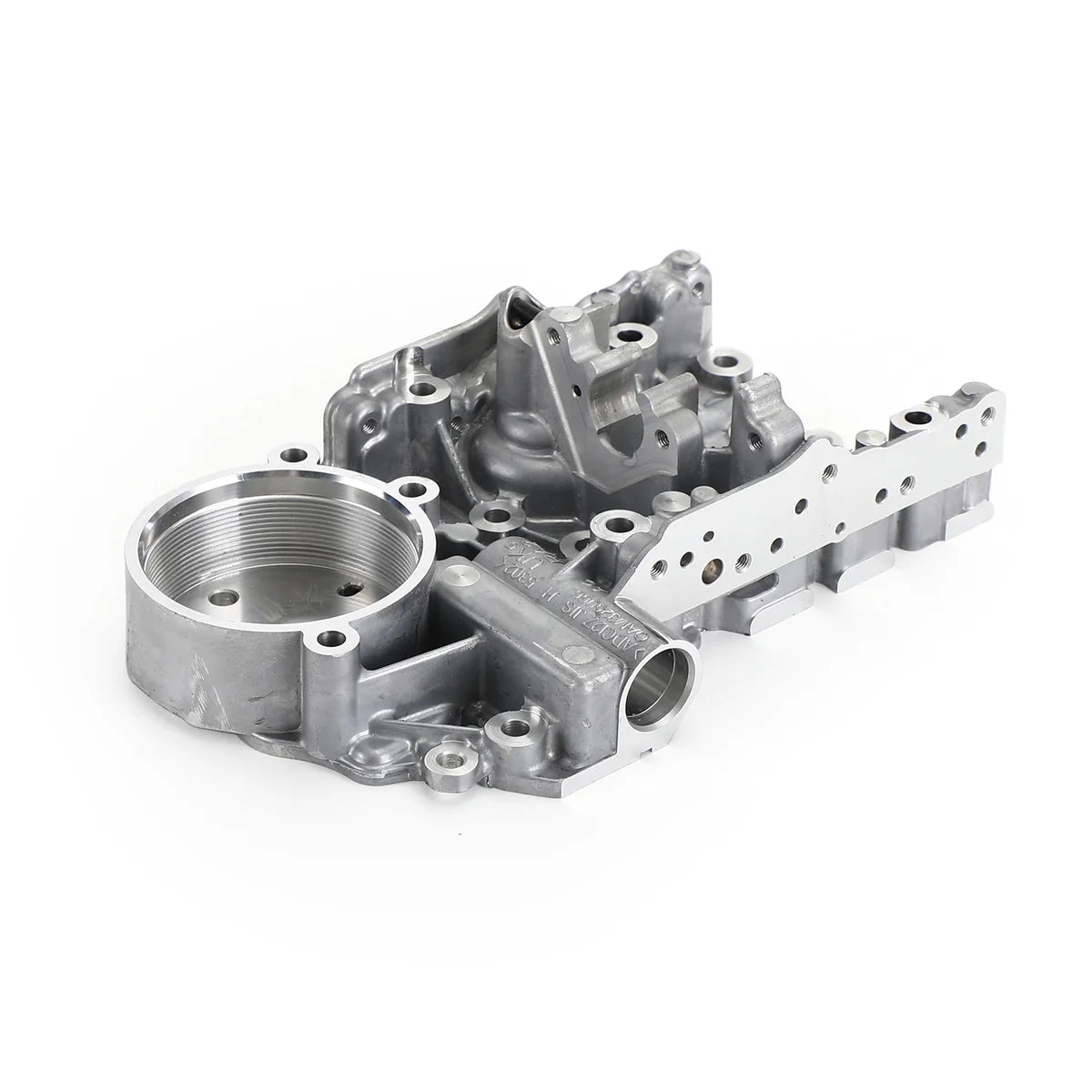

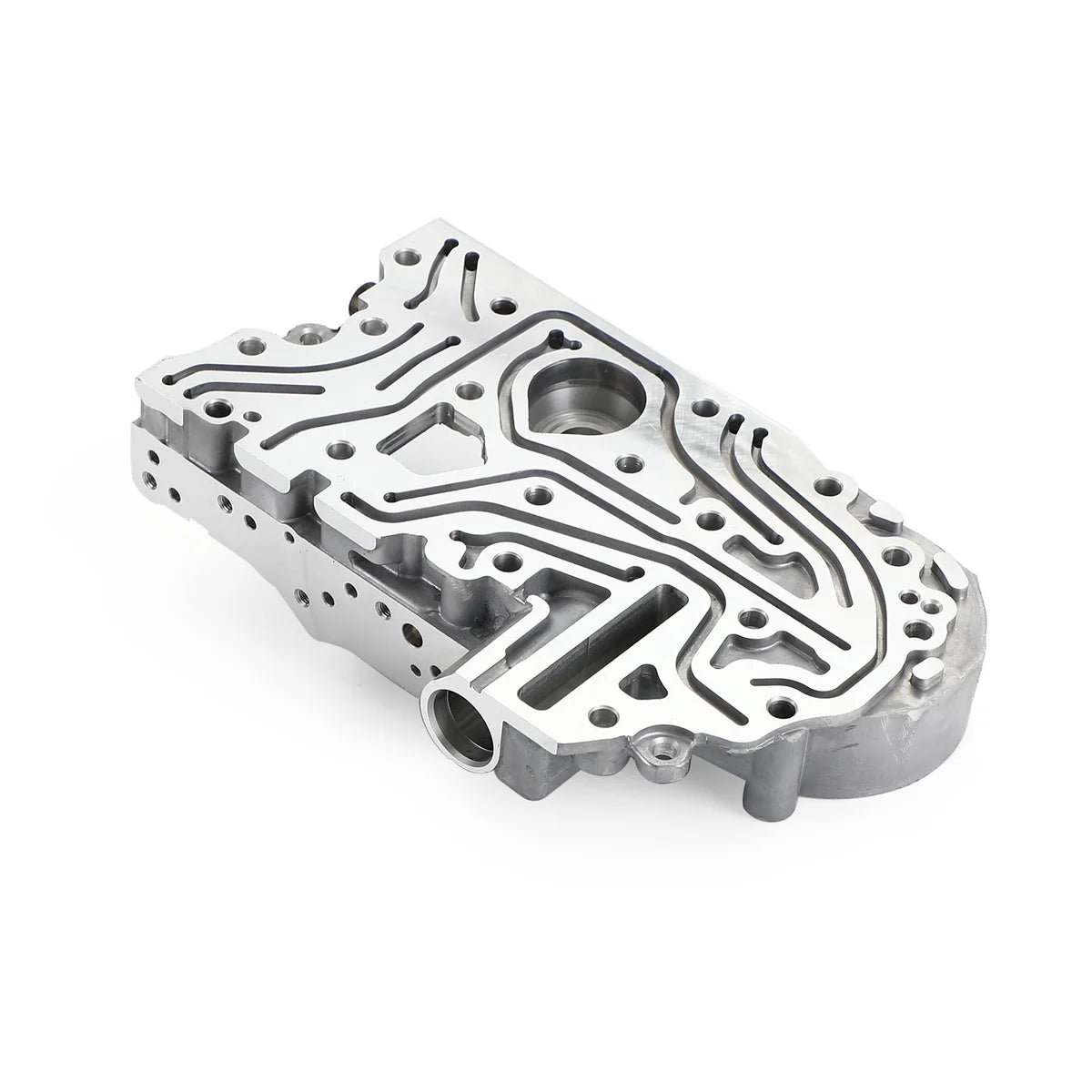

- Upgraded valve body — Strengthened, exceeds OEM specification
- Full seal & O-ring set — All seals required for a complete rebuild
- Gasket set — All gaskets as pictured
- Complete kit — No additional parts required
Compatible part numbers
DQ200 | 0AM | 0CW | 0AM325066AA | 0AM325066R | 0AM325066C | 0AM325066AC | 0AM325065S
Common symptoms of a failing DQ200 mechatronic
- ⚠️ Harsh, jerky, or crashing gear changes
- ⚠️ Inability to shift gears — stuck in gear or neutral
- ⚠️ Gearbox warning lights on the dashboard
- ⚠️ Delayed engagement when selecting Drive or Reverse
- ⚠️ Loss of odd or even gears
- ⚠️ Vehicle entering limp mode
Common associated fault codes
| Fault code | Description |
|---|---|
| P17BF | Hydraulic pump play protection |
| P189C / P1895 | Pressure accumulator or hydraulic pressure faults |
| P17D8 / P17D9 | Clutch pressure regulation issues |
| P072C / P073E | Gear engagement faults |
This list is not exhaustive. Other fault codes may also be present.
Vehicle compatibility
This kit is compatible with Volkswagen Group vehicles fitted with the 7-speed dry-clutch DSG (DQ200 / 0AM) transmission.
Volkswagen
- Golf Mk6 / Mk7 (1.2 TSI, 1.4 TSI) — approx. 2009–2017
- Polo 6R / AW (1.2 TSI, 1.4 TSI) — approx. 2010–2018
- Jetta (1.4 TSI) — approx. 2011–2016
- Passat (1.4 TSI) — approx. 2010–2015
- Caddy (1.2 TSI, 1.4 TSI, 1.6 Diesel) — approx. 2010–2018
- T-Cross / T-Roc (1.4 TSI)
- Tiguan (1.4 TSI, 1.8 TSI)
- Scirocco (1.4 TSI)
Audi
- A1 8X (1.2 TFSI, 1.4 TFSI) — approx. 2010–2018
- A3 8P / 8V (1.4 TFSI) — approx. 2009–2019
- Q2 (1.4 TSI)
- Q3 (1.4 TSI, 1.8 TSI)
Škoda
- Octavia (1.4 TSI) — approx. 2009–2016
- Fabia (1.2 TSI) — approx. 2010–2018
- Rapid / Scala (DQ200 variants)
SEAT
- Ibiza (1.2 TSI, 1.4 TSI) — approx. 2010–2018
- Leon (1.4 TSI) — approx. 2009–2016
Please note: Compatibility can vary by VIN, gearbox code, and software version. We strongly recommend confirming part numbers before purchase. If you're unsure, contact us with your VIN or gearbox code and we'll help confirm fitment.
