OBH OBT ODL DQ500 TCU PRESSURE SENSOR SET FOR VW AUDI x 2

DQ500 DSG 7-Speed Transmission TCU Clutch Pressure Sensor Pair — 0BH / 0BT / 0DL

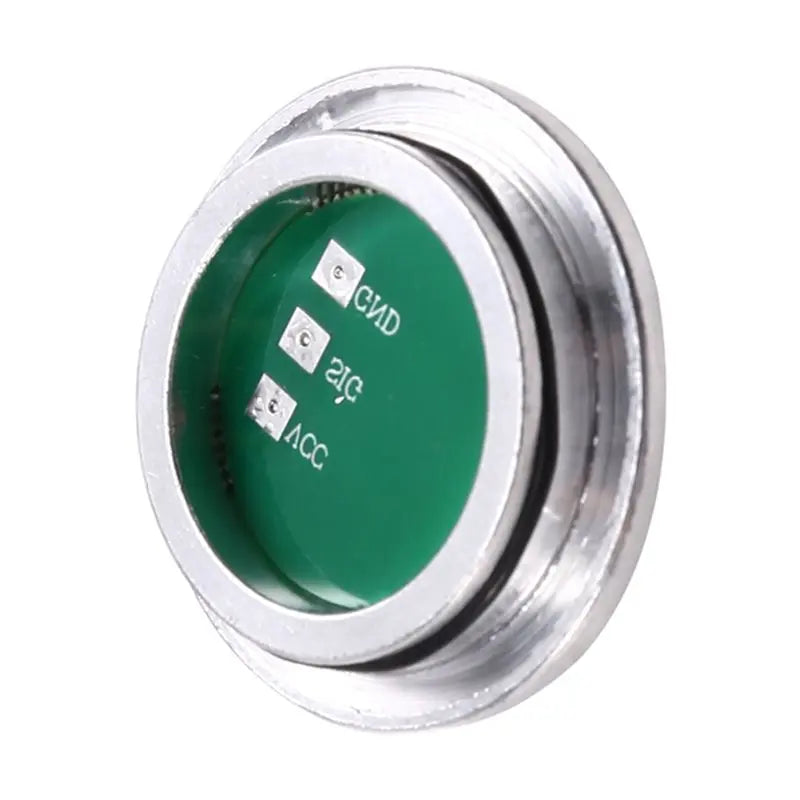

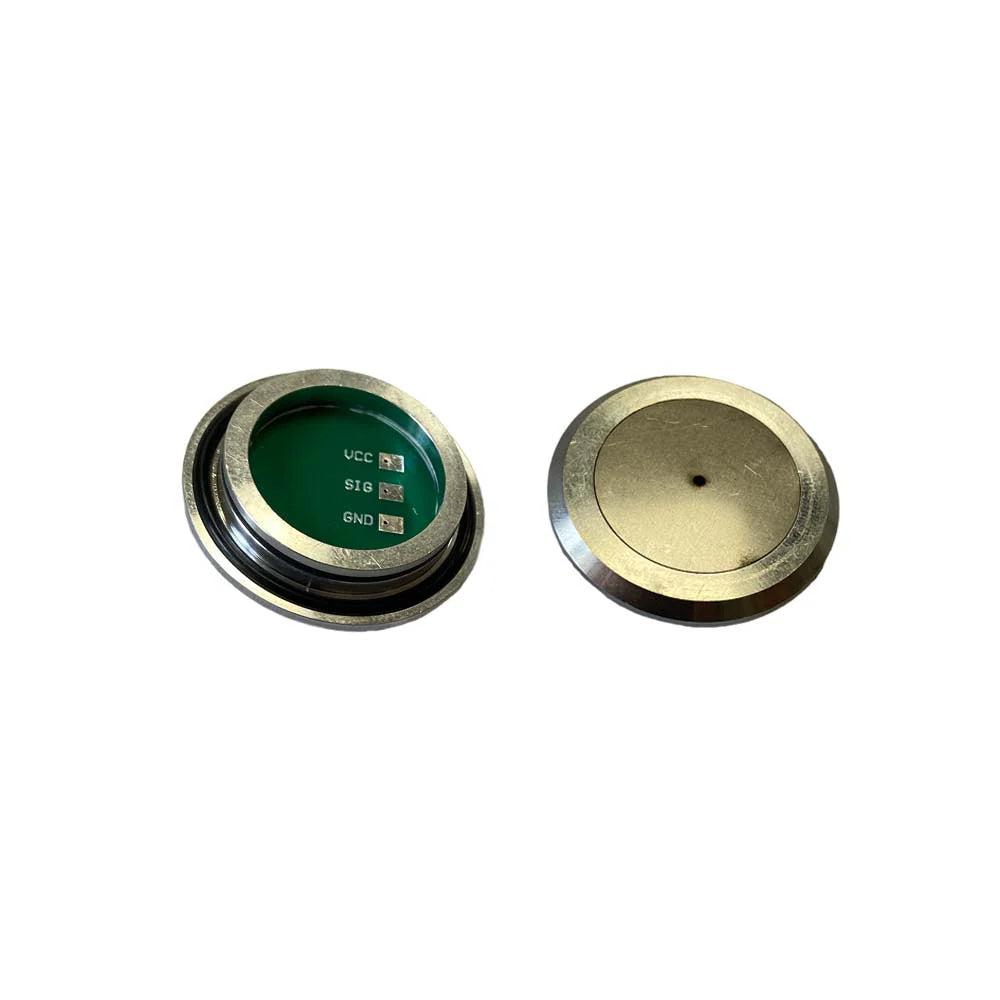

Hydraulic pressure sensor pair (G545 / G546) for the DQ500 7-speed wet dual-clutch transmission. These sensors are fitted inside the mechatronic unit and measure hydraulic pressure at clutch packs K1 and K2, feeding real-time data to the TCU to regulate clutch engagement. Failure of these sensors is one of the most common causes of DQ500 transmission faults, resulting in clutch control errors, limp mode, and restricted gear availability.

Always replace both sensors together.

Quantity: 2 sensors (1 pair) Sensor References: G545 / G546 Transmission Codes: 0BH / 0BT / 0DL

Common Fault Codes Resolved:

• P1735 — Position Sensor for Clutch 1, Electrical Malfunction
• P175E — Position Sensor for Clutch 1, Signal Invalid
• P1736 — Position Sensor for Clutch 2, Electrical Malfunction
• P176E — Position Sensor for Clutch 2, Signal Invalid

Symptoms of Failure:

• Transmission stuck in odd gears only (1st, 3rd, 5th, 7th) or even gears only (2nd, 4th, 6th, Reverse)
• Harsh or jerky gearshifts
• Transmission entering limp/emergency mode
• MIL or gearbox warning light

Compatible Vehicles:

Volkswagen

• Golf R Mk7 / Mk7.5
• Tiguan (2011–2017) — 1.4 TSI, 1.8 TSI, 2.0 TSI, 2.0 TDI
• Scirocco R — 2.0 TSI
• Transporter T5 / T6 — DSG variants
• Sharan (2015–2018)
• Arteon (2017+)
• Passat B8 — selected variants
• Multivan / Caravelle / California — DSG variants

Audi

• RS3 (8V)
• TT RS (8S)
• Q3 (8U) — 2.0 TDI / 2.0 TFSI quattro
• A3 e-tron

Seat

• Alhambra (2010+) — DSG variants
• Tarraco — DSG variants

Skoda

• Kodiaq — DSG variants
