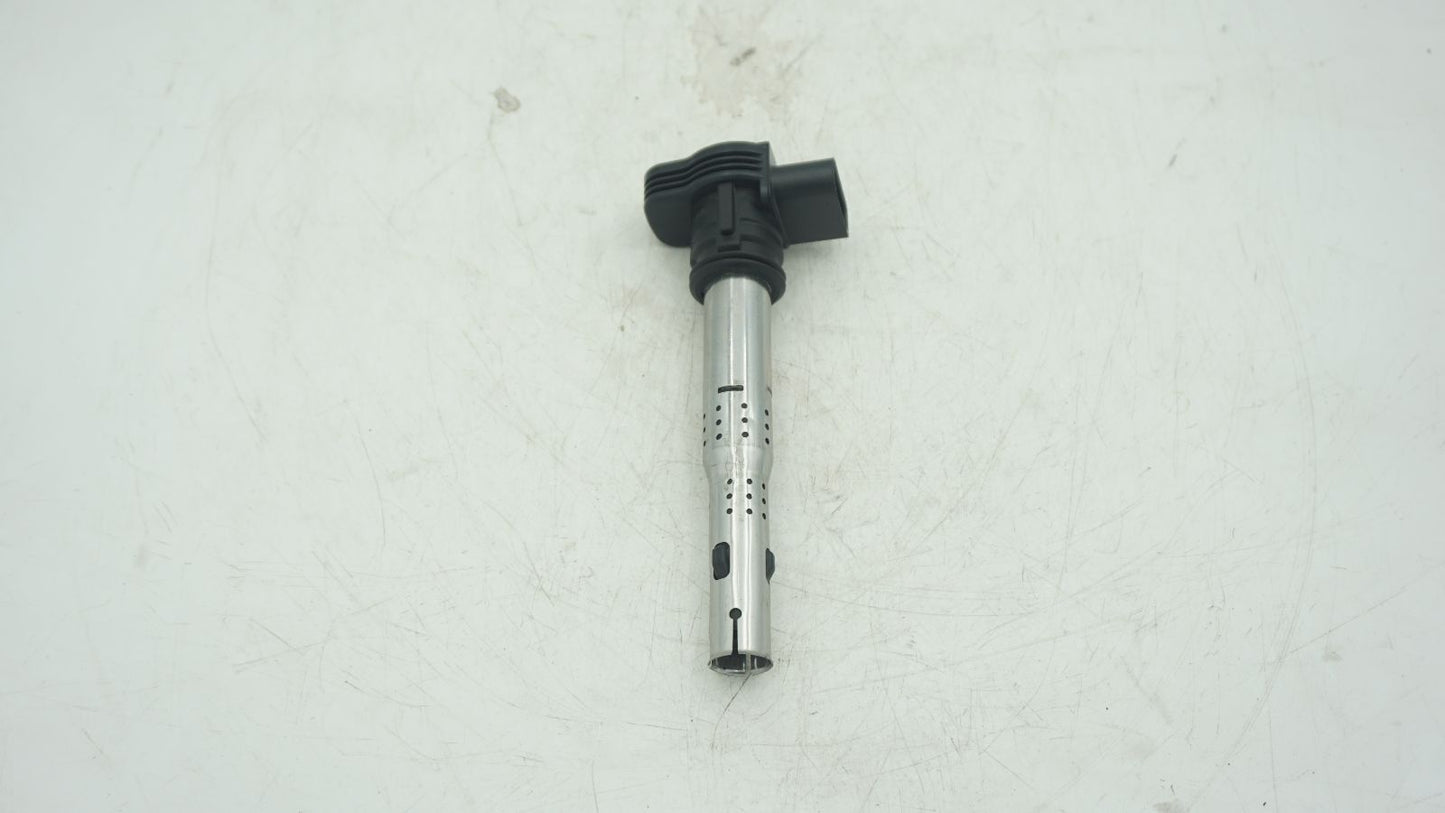

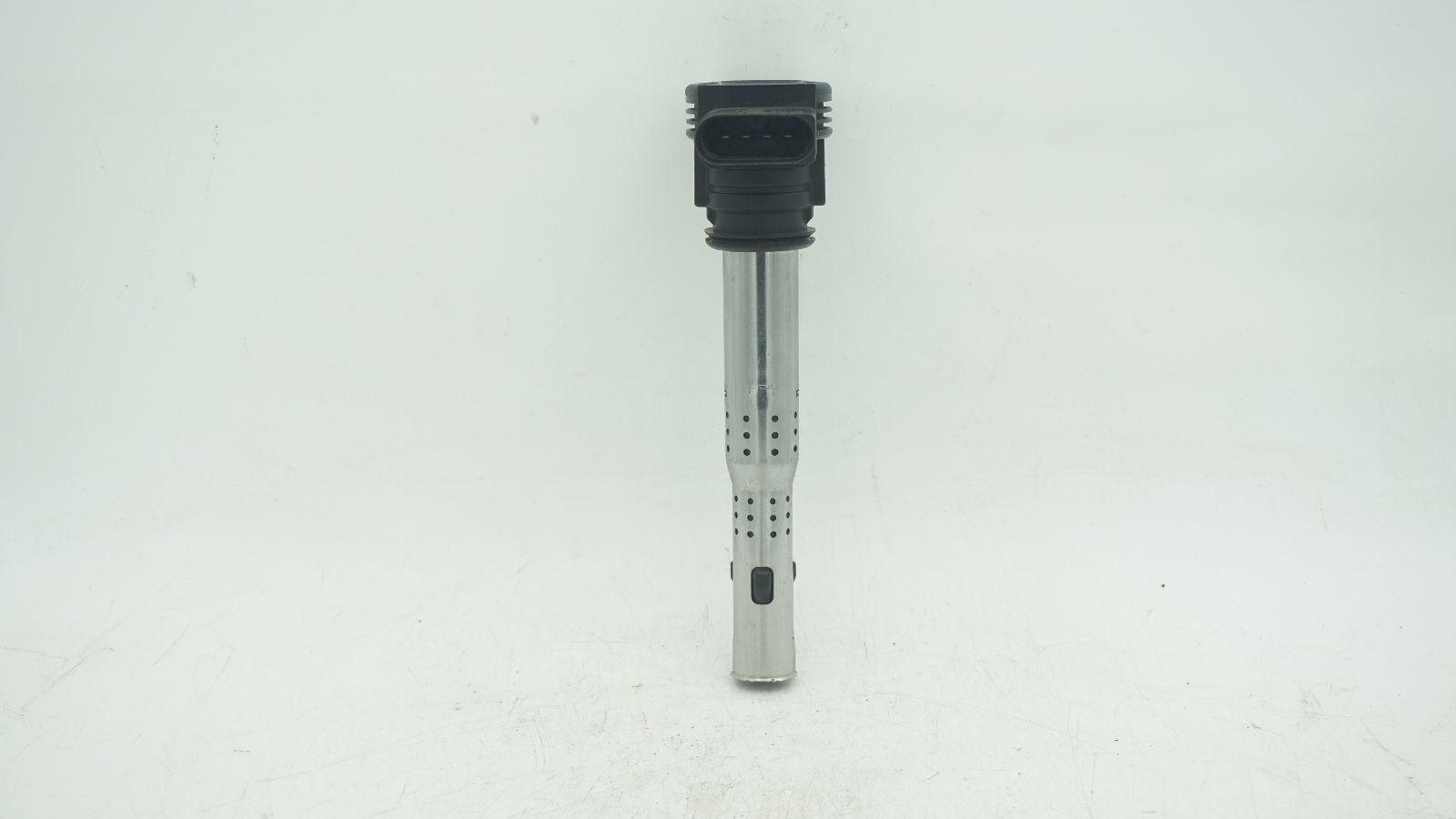

Genuine VW / Audi Eldor Ignition Coil Pack - 07K905715F (Used, Tested)
Overview
Used Genuine VW / Audi Eldor Ignition Coil Pack - 07K905715F — genuine OEM pencil-style ignition coil supplied to Volkswagen and Audi for the FSI / TFSI / TSI petrol engine family. Tested working before removal from the donor vehicle. A reliable replacement when one or more cylinders are misfiring, the engine runs rough, fuel economy has dropped, or P0301 / P0302 / P0303 / P0304 misfire codes are stored. The F revision is fully interchangeable with later revisions in the 06H905115 / 07K905715 / 06E905115 family.
Vehicle Fitment
- VW Golf MK5 / MK6 / MK7 (2004 — 2016) 2.0 TFSI / 2.0 TSI / 2.5L
- VW GTI MK5 / MK6 / MK7 (2006 — 2016) 2.0 TSI
- VW Jetta MK5 / MK6 (2005 — 2016) 2.0 TFSI / 2.5L
- VW Passat B6 / B7 / CC (2005 — 2016) 1.8 TSI / 2.0 TSI
- VW Tiguan (2007 — 2016) 2.0 TSI
- VW Beetle (2006 — 2016) 2.0 TSI / 2.5L
- VW Eos (2006 — 2016) 2.0 FSI / 2.0 TSI
- VW Scirocco (2008 — 2016) 2.0 TSI
- VW Touareg (2007 — 2010) 4.2L V8
- VW Amarok (2010 — 2016) 2.0 TFSI
- Audi A3 / S3 (2003 — 2013) 1.8 TFSI / 2.0 TFSI
- Audi A4 / S4 (2005 — 2016) 2.0 TFSI / 3.0 TFSI / 3.2 FSI / 4.2 V8
- Audi A5 / S5 (2008 — 2016) 2.0 TFSI / 3.0 TFSI / 3.2 FSI / 4.2 V8
- Audi A6 / S6 (2005 — 2016) 3.0 TFSI / 3.2 FSI / 4.2 V8 / 5.2 V10
- Audi A7 / S7 (2010 — 2016) 3.0 TFSI / 4.0 TFSI
- Audi A8 / S8 (2003 — 2016) 3.2 FSI / 4.2 V8 / 5.2 V10
- Audi Q3 / Q5 / Q7 (2007 — 2016) 2.0 TFSI / 3.0 TFSI / 3.2 FSI
- Audi TT / TTS (2006 — 2014) 1.8 TFSI / 2.0 TFSI / 3.2 V6
- Audi R8 (2008 — 2015) 4.2 V8 / 5.2 V10
- Audi RS4 / RS5 / RS6 (2007 — 2014) 4.2 V8 / 5.0 V10
- Skoda Octavia / Superb / Yeti (2005 — 2016) 1.8 TSI / 2.0 TSI
- Skoda Fabia RS / Roomster (2010 — 2014) 1.4 TSI
- Seat Leon / Altea / Toledo / Ibiza Cupra (2005 — 2016) 1.8 TSI / 2.0 TSI
- Seat Exeo (2008 — 2013) 2.0 TFSI
- Lamborghini Gallardo (2003 — 2014) 5.0 V10 / 5.2 V10
Specifications
| Type | Pencil ignition coil — coil-on-plug |
| Connector | 4-pin |
| Engine Family | VAG 1.8 TFSI / TSI, 2.0 TFSI / TSI / FSI, 2.5L 5-cylinder, 3.0 TFSI, 3.2 FSI V6, 4.0 / 4.2 FSI V8, 5.0 / 5.2 FSI V10 |
| Quantity | One (1) coil pack — sold individually |
| Brand | Eldor (genuine VW / Audi OEM supplier) |
| Condition | Used — tested working before removal from a running vehicle |
Cross Reference Part Numbers
- OE alt — 06H905115A / 06H905115B / 06H905115C
- OE alt — 06E905115A / B / C / D / E / F / G
- OE alt — 06F905115E / 06F905115F
- OE alt — 07K905715C / D / E / F / G
- OE alt — Bosch 0221604115
OEM Part Number: 07K905715F
Condition
This is a used genuine OEM part. It has been tested working before removal from a running vehicle. Bosch / VW recommend replacing all coils as a set to keep ignition energy consistent across cylinders — please consider buying a matched set if your other coils are also high mileage.
