BMW N40 / N42 / N45 / N46 Exhaust VANOS Camshaft Adjuster - 11361707315 (Used)
Overview

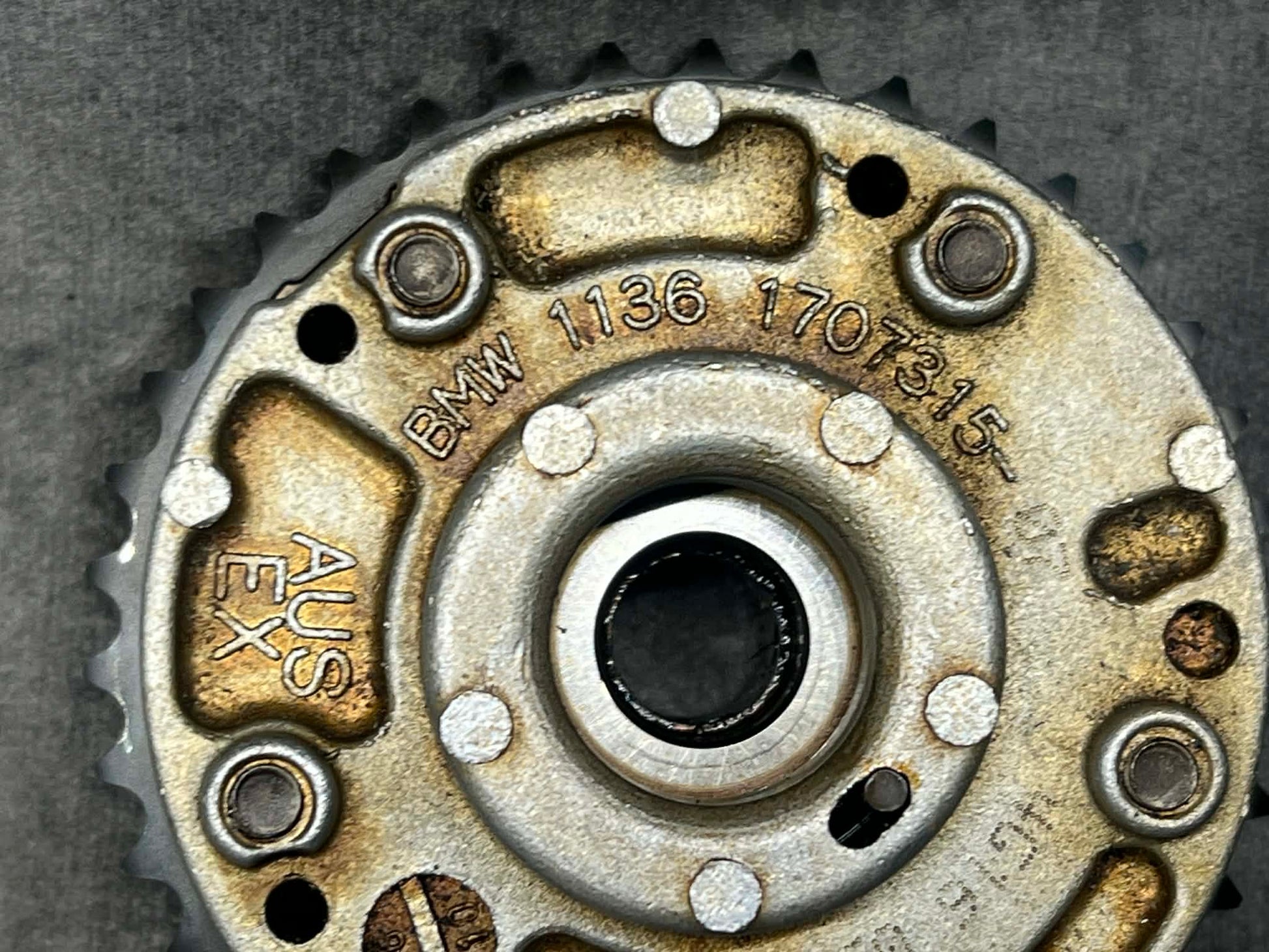

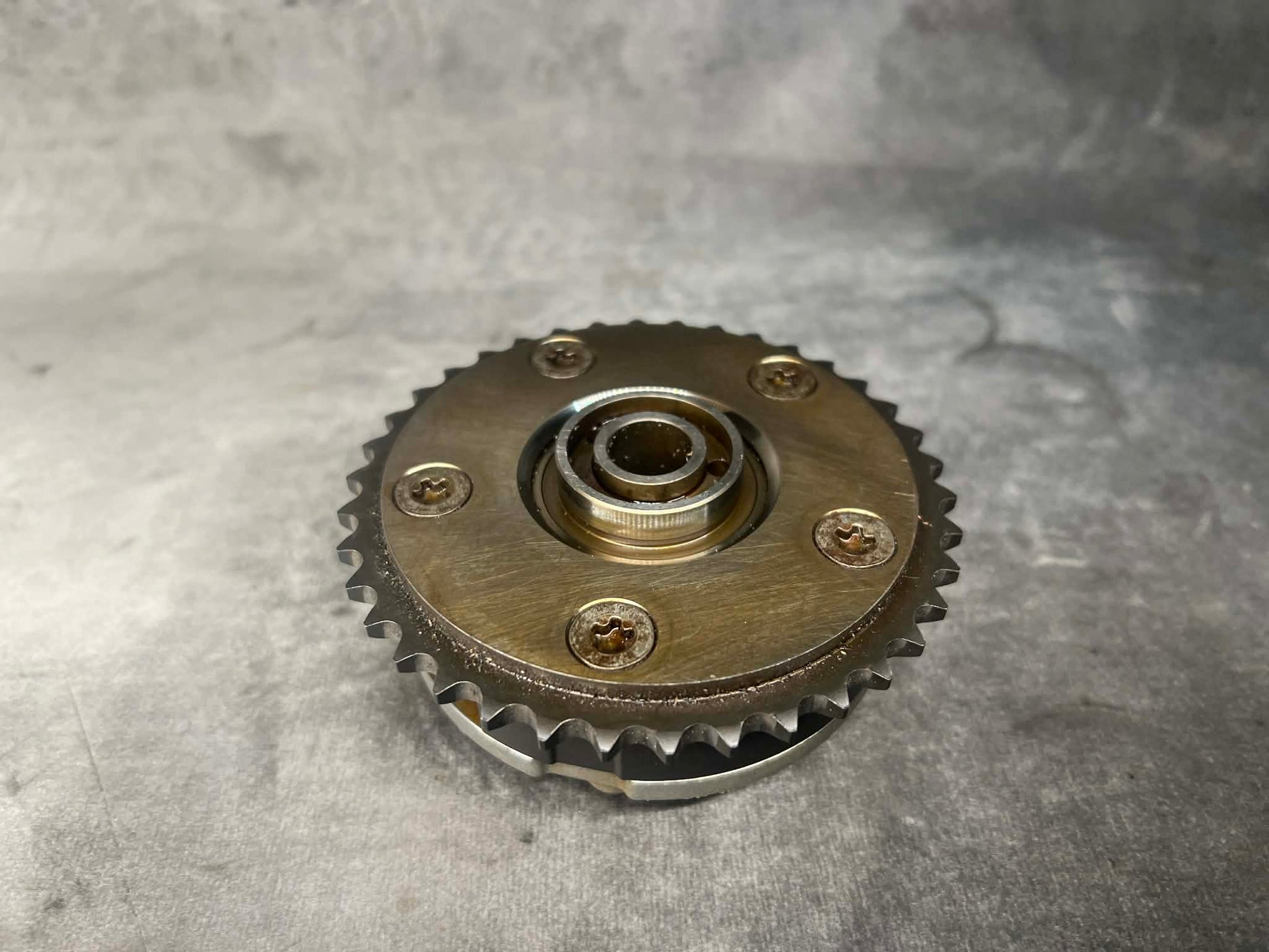

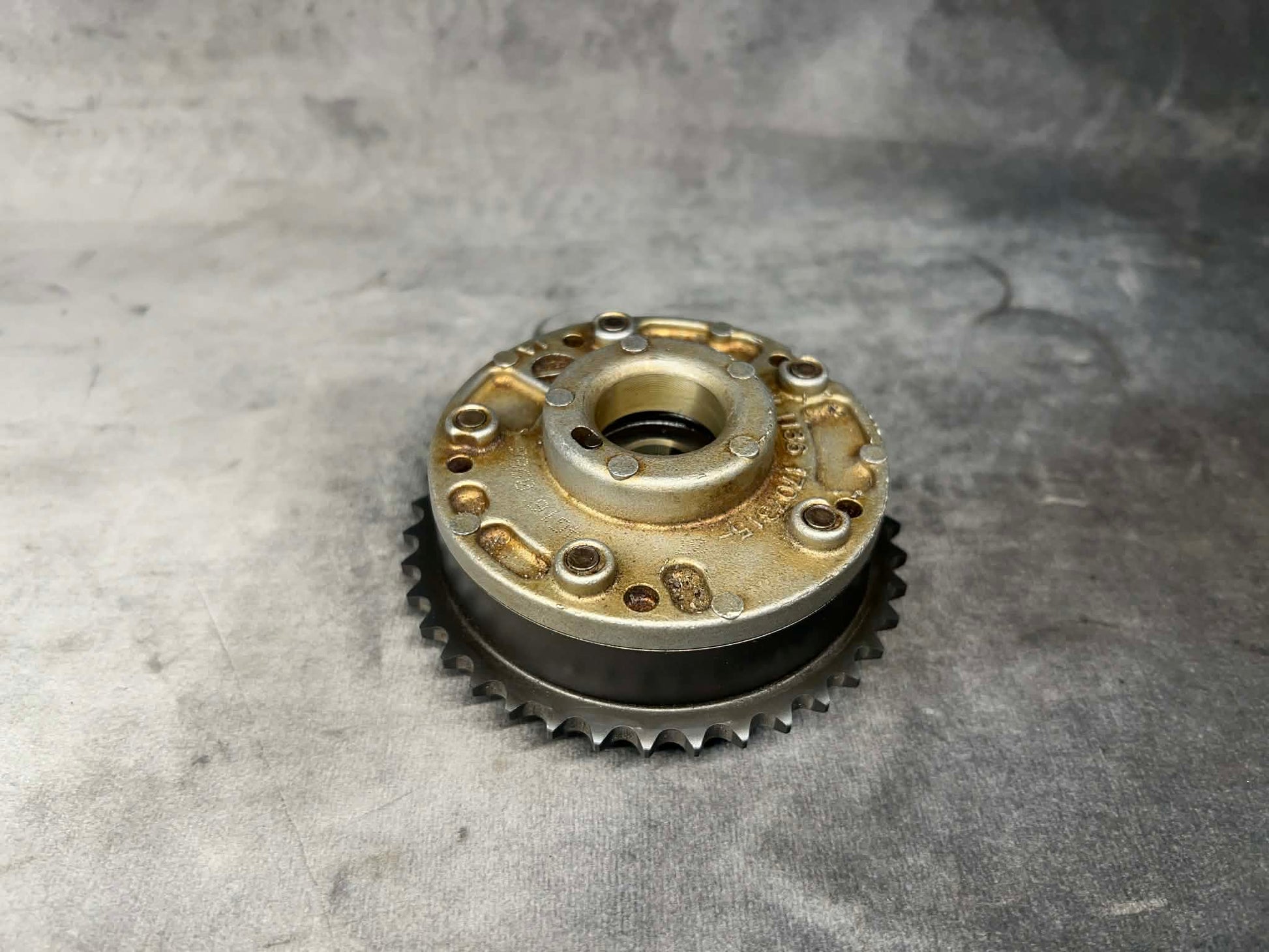

Used BMW Exhaust VANOS Camshaft Adjuster - 11361707315 — genuine OEM exhaust-side VANOS camshaft adjuster (cam phaser / VVT sprocket) for the N40 / N42 / N45 / N46 1.6L / 1.8L / 2.0L petrol engine family. The adjuster bolts to the front of the exhaust camshaft and is hydraulically actuated by oil pressure to advance/retard timing. Common cause of P10DF / 2A82 / 2A87 VANOS fault codes, rough idle, and reduced low-end torque when worn or seized.
Important — does NOT include the cam sensor trigger wheel (the slotted disk that bolts to the back of the adjuster). You'll need to transfer your existing trigger wheel, or source one separately.
Vehicle Fitment
- 1' E81 (09/2006 — 12/2011) N46N — 116i, 118i, 120i
- 1' E82 Coupé (10/2006 — 10/2013) N46N — 120i
- 1' E87 / E87 LCI (03/2003 — 06/2011) N46 / N46N — 116i, 118i, 120i
- 1' E88 Convertible (10/2006 — 10/2013) N46N — 118i, 120i
- 3' E46 (03/2000 — 08/2006) N40 / N42 / N45 / N46 — 316i, 316ti, 318i, 318Ci, 318ti
- 3' E90 / E91 / E92 / E93 (02/2004 — 12/2013) N43 / N46 / N46N — 316i, 318i, 320i
- 5' E60 LCI (04/2006 — 12/2009) N46N — 520i
- X1 E84 (09/2008 — 06/2015) N46N — sDrive18i, sDrive20i
- X3 E83 / E83 LCI (05/2003 — 12/2010) N46 — 2.0i
- Z4 E85 (06/2004 — 08/2008) N46 — 2.0i
Specifications
| Position | Exhaust camshaft (rear bank on N40/N42/N45/N46) |
| Includes | VANOS adjuster only — cam sensor trigger wheel NOT included |
| Pairs With | Intake adjuster 11367500032 (sold separately) |
| Coding | Not required — direct fit replacement |
| Condition | Used — removed from a running vehicle |
OEM Part Number: 1707315
Full BMW Part Number: 11361707315
Condition
This is a used genuine OEM part. Removed from a running vehicle. We recommend replacing both the intake (11367500032) and exhaust (this part) adjusters together, along with the cam timing chain, guides, and tensioner if your engine has high mileage — these are wear-as-a-set items on N42/N46 engines.
